Climax Paris Competition
Location : Paris, France
Status : Competition(Entry)
GFA : 781.23 sqm
Program : Environmental Pavilion
This project was conceived as a pavilion proposal in response to the 2015 Paris Climate Agreement (COP21), with the aim of conveying awareness of climate change to the citizens of Paris through the language of architecture.
The site is located at the plaza in front of Gare de l’Est in the 10th arrondissement of Paris. The starting point of the project was the sight of the plaza overwhelmed by parked motorcycles.
The core strategy of the design was to preserve as much of the existing site environment as possible including trees, grass, and bicycle parking areas while focusing on the issue of motorcycle congestion concentrated in the northern and eastern zones of the site. This clustering of vehicles contributes significantly to urban pollution and the heat island effect. The project sought to visually represent this phenomenon in order to raise environmental awareness. The excessive motorcycle parking was not treated merely as a problem to be eliminated, but rather as a communication device a way to address urban ecological issues through practical and positive engagement.
이 프로젝트는 2015년 파리기후협약(COP21)을 맞아, 기후 변화에 대한 경각심을 파리 시민에게 건축적 언어로 전달하고자 기획된 파빌리온 아이디어 공모작이다. 대상지는 파리 10구에 위치한 동역(Gare de l’Est) 앞 광장이다.
광장을 가득 메운 수많은 오토바이가 이 프로젝트의 출발점이 되었다. 본 프로젝트는 기존 대지의 환경을 최대한 보존하는 것을 핵심 전략으로 삼았다. 나무, 잔디, 자전거 주차 공간 등 가능한 많은 요소를 유지하고자 했으며, 특히 부지 북측과 동측에 집중된 오토바이 주차 문제에 주목하였다.
이러한 밀집은 도시 오염과 열섬 현상의 주요 원인으로 작용하고 있으며, 우리는 이를 시각적으로 재현함으로써 환경 문제에 대한 경각심을 불러일으키고자 했다.
오토바이의 과도한 주차는 단순히 제거해야 할 요소가 아니라, 도시 생태 문제를 실용적이고 긍정적인 방식으로 환기시키는하나의 커뮤니케이션 장치로 기능한다.

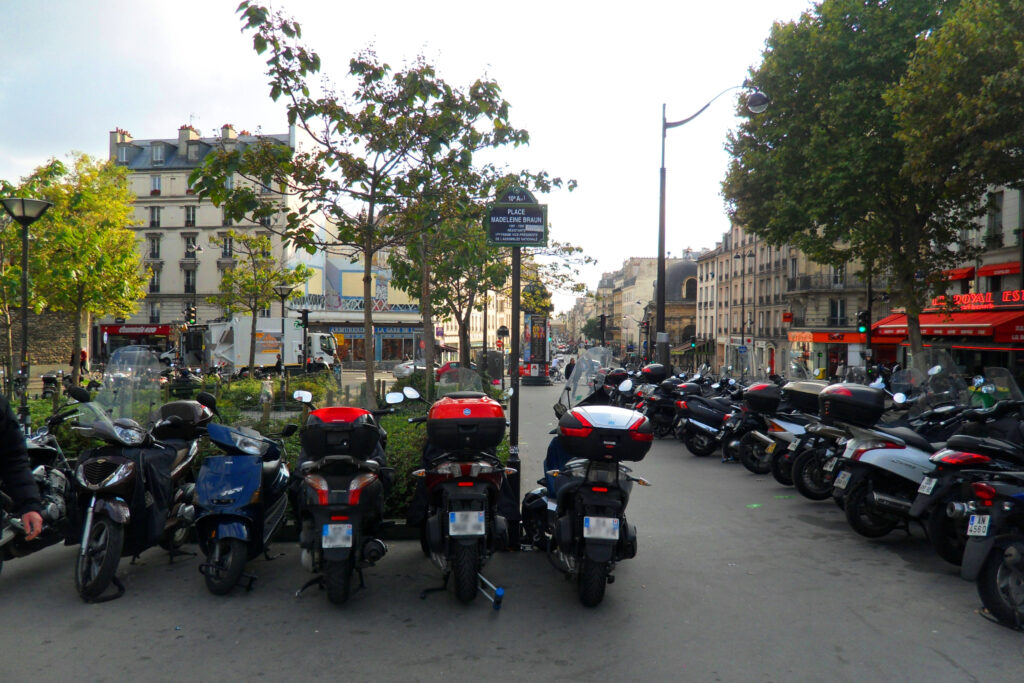

< Site Before Intervention >

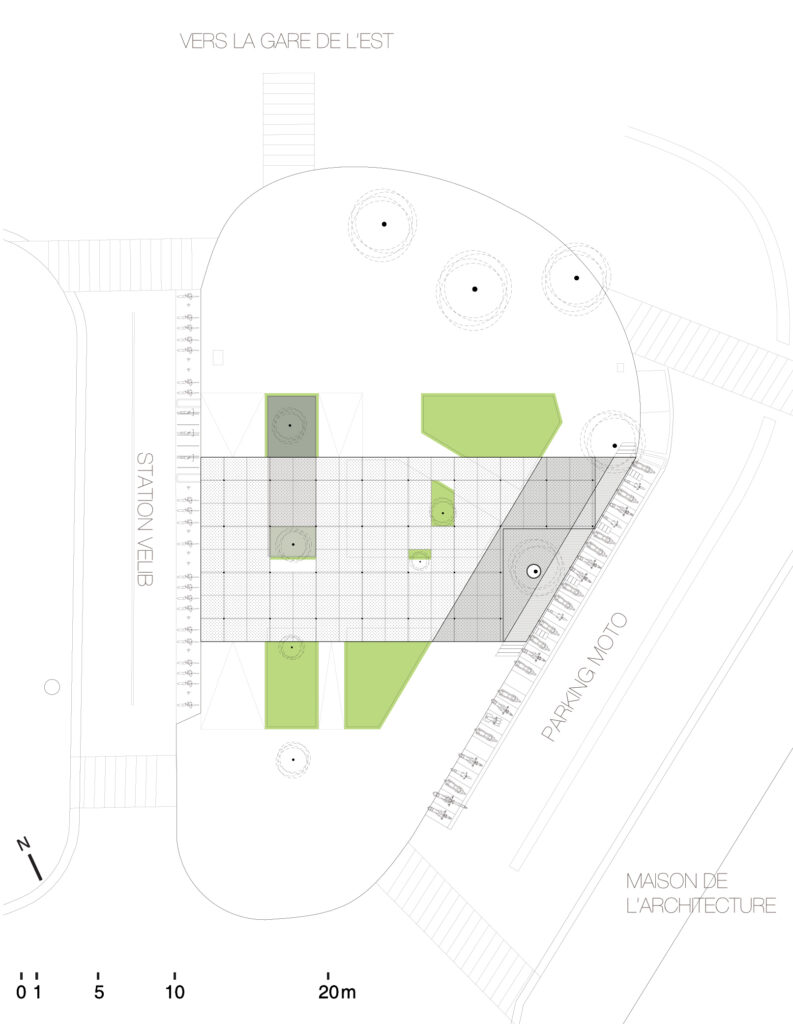

< Pavilion Site Plan >

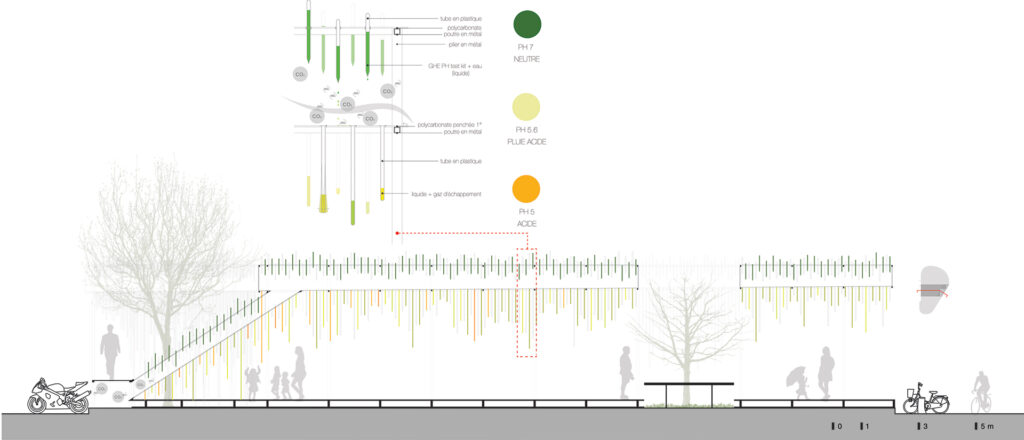

< Section >
Colorful Rain is a pavilion that visualizes urban air pollution through a pH-sensitive color system. The roof is designed to collect exhaust gas emitted from surrounding motorcycles, and a series of color-reactive tubes installed above respond to the level of air pollution. As the air interacts with the solution, a visible color transformation occurs, allowing visitors to perceive the presence of environmental risk in real time.
배기가스에 반응하는 pH 시약을 활용해 공기 오염을 시각적으로 드러내는 파빌리온이다. 파빌리온의 지붕은 주변 오토바이에서 발생하는 배기가스를 포집할 수 있도록 설계되어 있으며, 상부에는 pH 반응 기반의 컬러 튜브 시스템이 설치된다.
튜브 내부의 반응액은 오염된 공기와 접촉하며 색의 변화를 유도하고, 이러한 변화는 관람자에게 도시 대기의 오염 정도를 직관적으로 전달한다.
